Custom Aquarum refrigerit capacitors ad inductionem calefactio & liquescens Factory

Technical data:

Signa	GB / T 3984.1-2004 / glacies 60110-1: MCMXCVIII / ISO9001
Output	Upto 14.000 Kvar
Voltage	8,000 Volts AC usque ad
Frequentia	Usque ad 100khz
Tappings	Tapped / Untapped
Phase	Unum tempus
Refrigerium	Aqua frigidior / Aeris refrigeratum
Adscensio	Horizontalis / vertical
CAESTRUM	Aluminium / Aliquam Steel
Casu consilio	Solantur (Mortuus) / Case
Praesidium	P Ressure switch
Ambientium aer temperatus	-20 / L ℃
Capacitance tolerantia	-5 / X%
Aquarum rate	6L / min
Max. Aqua temperatus	30 ℃
Max. exitus aqua temperatus	45 ℃

Visum

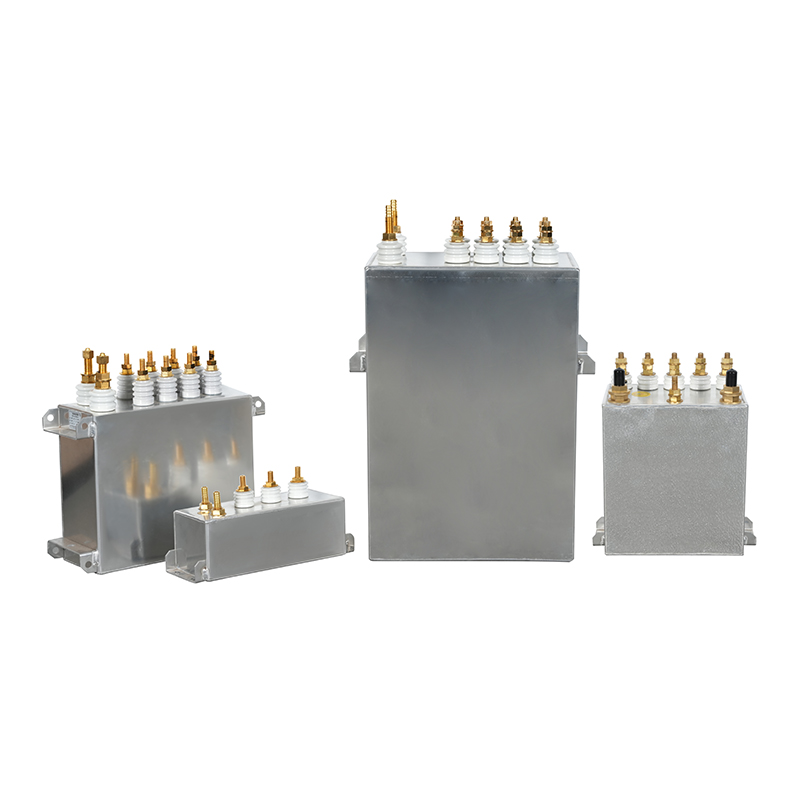

Aqua-cooled inductione calefacit capacitor

Air-refrigeratum inductionem calefacit capacitor

Ram 2200V 3960kvar 3000HZ Medium Frequency Induction Heating Capacitors

RFM 3000V 7804kvar 1200Hz aquam Refrigerant Induction calefacere Capacitors

RFM 3300V 7350kvar 1500hz Metallized Film heating Capacitors

Ram 3300V 6921kvar 1200Hz Medium Frequency Induction calefactio Capacitors

Ram 1250V 3000kvar 1000Hz Salve calefacit capacitor

Ram 1250V 2000kvar 500hz humilis frequency inductione capacitor

RFM 1500kvar aqua-refrigeratum 800V inductione Capacitor

Ram 3000kvar medio frequency aqua refrigeratum capacitors

Ram 1200V High pressura MMM HZ Electric Heating Capacitor

Ram 3000V princeps pressura aqua refrigerationem calefactio capacitors

Ram 1200Hz Medium Frequency 7200KVAR inductione capacitors

8400Kvar 3.0kv 700Hz Ram inductione calefacit et liquescens capacitors

6921kvar 3.0kv 1200Hz RFM Electric Heating Capacitor

4.0kv 600hz inductione furnorum aqua refrigeratum capacitors

3,6kv 8000kvar medium frequency inductionem calefacit capacitor

3,3kv 500hz potentia Capacitor inductione calefacit capacitor

Induction fornacem princeps potentia electrica calefactio aqua refrigeratum Capacitor

3.0kv humilis Frequency fornacem letantem inductionem calefacit capacitor

3.0kv 700hz inductione calefacit aqua refrigeratum Capacitor

Medium frequency furnas 1000Hz inductione calefacit capacitor

Generalis High Voltage Electric Induction Heating Capacitors

1200Hz Electric Induction liquescens fornacem potentia Capacitor

1000Hz High voltage inductione calefacit aqua refrigeratum Capacitor

1.5kv 4000kvar 1000Hz inductione calefacit aqua refrigerationem capacitor

Applicatio

Anti Power Capacitors late in inductione liquescens Furnorum et inductionem calefacit apparatu, sunt enim melior potentia elementum usum in inductione furnas et heaters. Nos potest customized secundum necessitates customers.

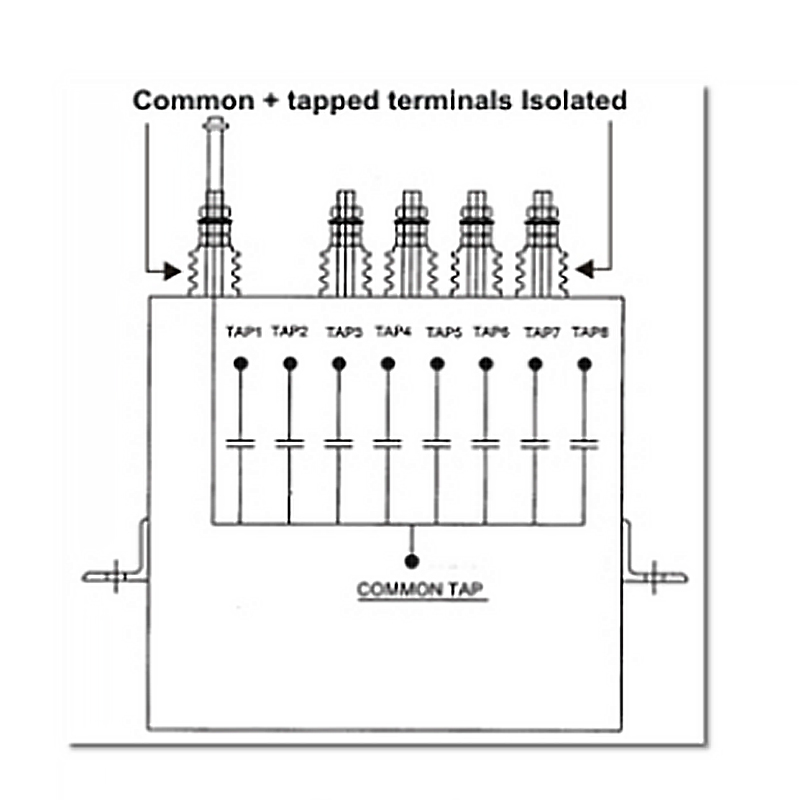

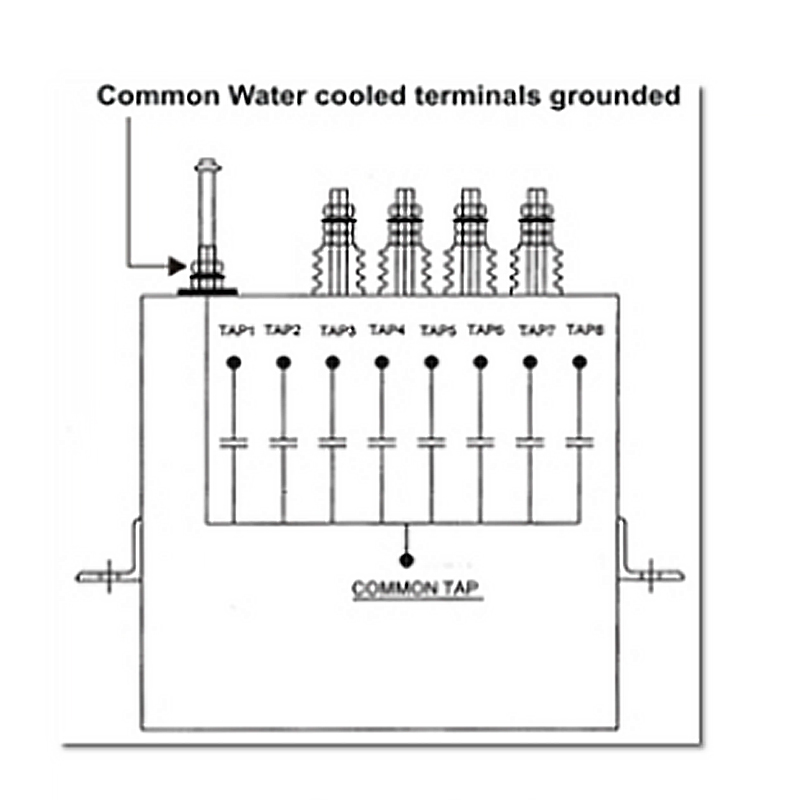

I configuratione

Configuratione II

Configuratione III

Constructio

In officinis aqua refrigeratum inductione calefacit et liquescens capacitors cum Polypropylene film (dielectric), interleaved cum altum puritatem aluminium ffoyle (electrode). Haec wingdings complanatis et convenerunt in sarcina ad solidatorium et electrica hospites. Totius coetus subiectum admodum gradibus vacuo sub qua impregnation fit cum non- PCB electrica gradu insulating oleum. Capacitors sunt provisum cum excelsum scelerisque conductivity aeris tubulis facilitate fluxus refrigerationem aquam. Efficens calor dissipatio est vitalis ad consequi desideravit capacitor operating temperatus et vita expectationem.

Probat

Omnis capacitori probata multis ante exposch:

Signatio Test: Sine Leakage
Signatio de Frigus Pipe: Sine Leakage
Voltage test inter duas terminals: DC cum IV temporibus rated voltage pro X seconds, ac cum II temporibus rated voltage pro X seconds
Voltage test inter terminum et testam: AC cum 2.5 temporibus rated voltage, minimum voltage 2kv ad I minute.
Capacitance test: -5- X%
Tangens de damno angulo Capacitor (XX ℃): et damnum tangentis Tanδ sub 0.0008 In XX ℃.
Normalis clausit.
